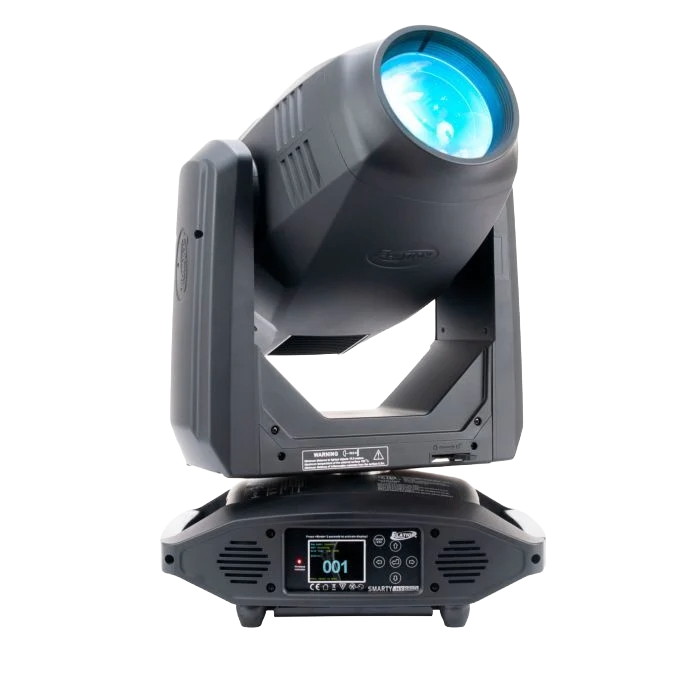

Elation Smarty Hybrid

Elation Smarty Hybrid

Full feature hybrid moving lamp using a 330W Arc Lamp and featuring CMY colormixing, 26 gobos, and a wide zoom range.

Categories: , Brand:

Description

SMARTY HYBRID is a professional-grade lighting solution. The Smarty Hybrid™ is a compact full featured CMY color mixing spot, beam, and wash hybrid luminaire featuring the all new Philips™ MSD Platinum 200 Flex lamp with “FLEX” technology which uses a smartly designed discharge lamp/ballast package to produce high output and compact performance at an efficient, long life solution of up to 6,000 hours.

Name – Smarty Hybrid
Fixture Type – Arc, Moving head
Manufacturer – Elation
Optional Accessories –
Highlights:



Additional information

Features

EFFECTS
– Motorized Zoom
– 4 Rotating Full Blackout Framing Blades, +/- 60° Index
– Dual Variable Frost Filter (Medium/ Wash)
– 4 Facet Round, 4 Facet Linear Prism
– Motorized Iris
– Variable 16-bit Dimming Curve Modes
– High Speed Electronic Shutter and Strobe
– Pan Angle: 540° / 630°
– Tilt Angle: 250°

COLOR
– RGBMA Color Array
– CMY Emulation
– Variable CCT 2400K – 8500K
– Green/Magenta Shift
– Virtual Gel Swatch Book

GOBOS
– 1x 6 Rotating / Indexing Interchangeable Glass Gobos
– 1x 7 Fixed Interchangeable Glass Gobos
– Animation Wheel

Features
– Full Spectrum 800W RGBMA LED Engine
– Precise dynamic whites from 2400 – 8500K
– Instant color changes, Natural color transitions
– Rich and intense primary colors
– Rotating and Fixed Gobos plus Animation Wheel
– Full Blackout Framing System
– Iris, Prism, and Dual Frost
– Wide Zoom Range from 7° to 53°
– Large 140mm front aperture
Control Connections

– 4 DMX Channel Modes (RGBMA 40/61) (CMY 38/57)
– 16-bit Pan, Tilt, and Dimming Control
– DMX Adjustable LED Frequency
– DMX, RDM, Art-NET, sACN Protocol Support
– 4 Button Touch Control Panel
– Full Color 180° Reversible LCD Menu Display
– 16 Bit Resolution Adjustable Movement
– 5pin DMX In/Out
– Locking Ethernet In/Out
– IP65 Locking Power In
– With Wired Digital Communication Network
Electrical/Thermal

– AC 100-240V – 50/60Hz
– 1126W Max Power Consumption
– 14°F to 113°F (-10°C to 45°C)
– BTU/hr (+/- 10%) 3839.66
Dimensions

– Length: 18.19” (462mm)
– Width: 21.26" (540mm)
– Vertical Height: 28.3" (719mm)
– Weight: 76.3 lbs. (34.6kg)
