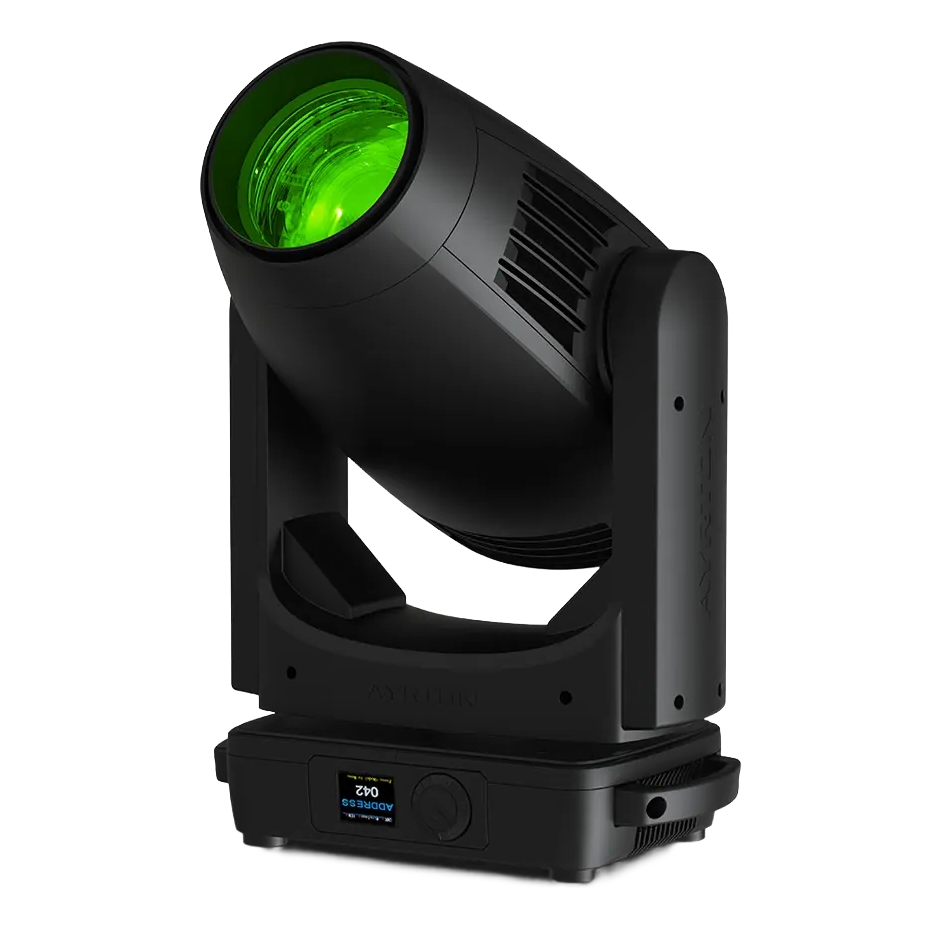

Ayrton Diablo S

Ayrton Diablo S

The Diablo-S by Aryton is the smallest, lightest and most efficient luminaire of its category. With a record output of 19,000 lumens and a total weight of 21.8 kg, the Diablo is a powerhouse of technology that will tempt the most demanding lighting dreamers.

SKU: A-DLOS Category: Tag:

Description

The Diablo-S by Aryton is the smallest, lightest and most efficient luminaire of its category. With a record output of 19,000 lumens and a total weight of 21.8 kg, the Diablo is a powerhouse of technology that will tempt the most demanding lighting designers. Ayrton has miniaturised the framing system while maximizing the performance level. The framing section allows accurate positioning of its four shutter blades on a 100% surface area in all positions, so that the user can frame any object regardless of the luminaire’s position. A new ultra-compact high-output 550W power supply feeds eight additional motors in the framing system, fitting into the original MISTRAL format. The Diablo contains a 13-element proprietary optical system delivering an 7.5:1 zoom ratio with a zoom range of 7° to 53°. The 119 mm frontal lens can produce an extremely uniform flat beam that can render images perfectly in all conditions and at any beam angle.

Name – Diablo-S
Fixture Type – LED, Moving head
Manufacturer – Aryton
Highlights: Motorized framing-shutters, Zoom-range, Weight class



Additional information

Features

EFFECTS
– Graphic animation effect-wheel with continuous rotation in both directions
– 5-facet circular indexable rotating prism
– Light frost filter
– Heavy frost filter (optional, included)
– Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour -variation
– White or colour strobe effect, with speed adjustment from 1 to 25 flashes per second
– Indexable rotating gobo wheel with 7 high-precision glass gobos, plus open position
– Adjustable-speed rotating gobo in both directions

COLOR
– Sophisticated colour mix system providing CMY colour mixing
– Variable CTO colour temperature correction
– Fixed colour wheel with seven complementary colours

FEATURES
– 4 individually positionable shutter blades
– Rotation of the framing system module: +/- 45°
– 13-element 7.5:1 zoom high-resolution optic system
– Beam aperture: 7° to 53°
– Fast motorised linear zoom
– Tempered anti-reflective coated lenses
– 119 mm frontal lens for greater performance
– Fast iris diaphragm with adjustable dynamic effects
– Iris range: 15% to 100% open
Control/Connections

– DMX 512 protocol, through DMX cable or a wireless system
– DMX-RDM compatible
– Stand-alone mode and Master/Slave modes
– Local control panel, with LCD display
– Choice of 3 DMX modes (from 34 to 56 DMX channels)
Electrical/Thermal

– 100 to 240 Volts – 50/60 Hz
– Power: 550 W maximum
– Advanced liquid cooling system
– Self-adjusting variable speed fans for quiet operation (Auto mode)
– Selectable ventilation user modes including a new Silent Mode
– Safety protection against temperatures excesses
– Operating positions: all (device on floor or fixed to a support)
– Maximum permitted ambient temperature (Ta max): 45 °C (113 °F)
– Minimum permitted ambient temperature (Ta min): -10 °C (14 °F)
– Minimum usage distance: 1.5 m (4.92 ft)
Dimensions

– L x W x D: 14.37" x 23.27" x 8.35"
– 48.5 Lbs
